ECM-25 Event Matting
ECM-25 | Event Matting

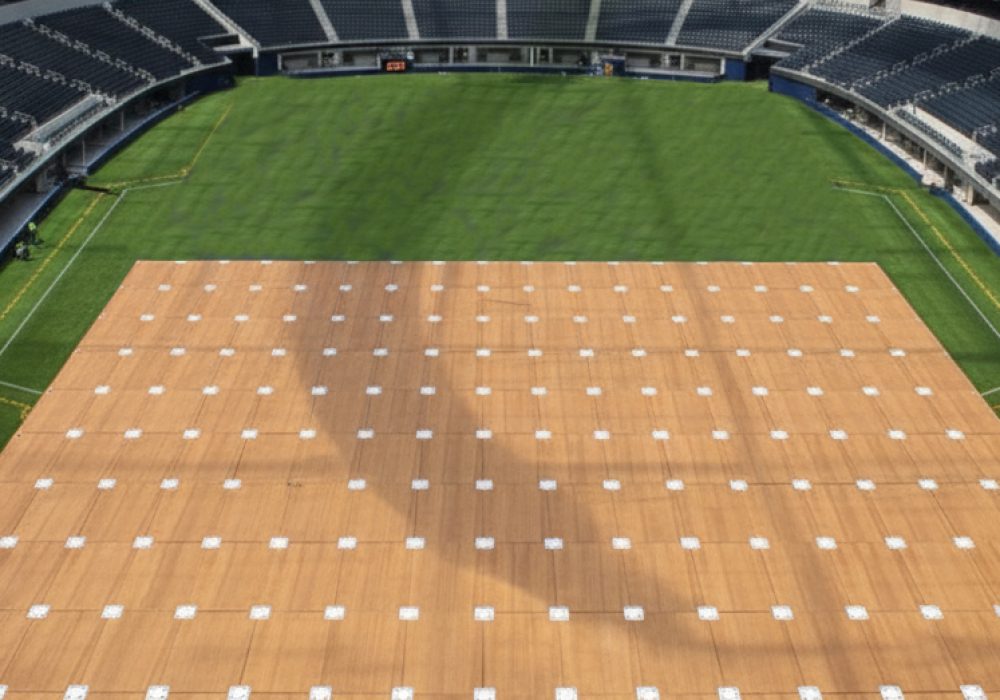

ECM-25 Event Matting is an ideal eco-friendly, sustainable flex weave bamboo solution for all of your events. Delivering engineered flex weave for event flooring, walkways, access routes, and staging areas.

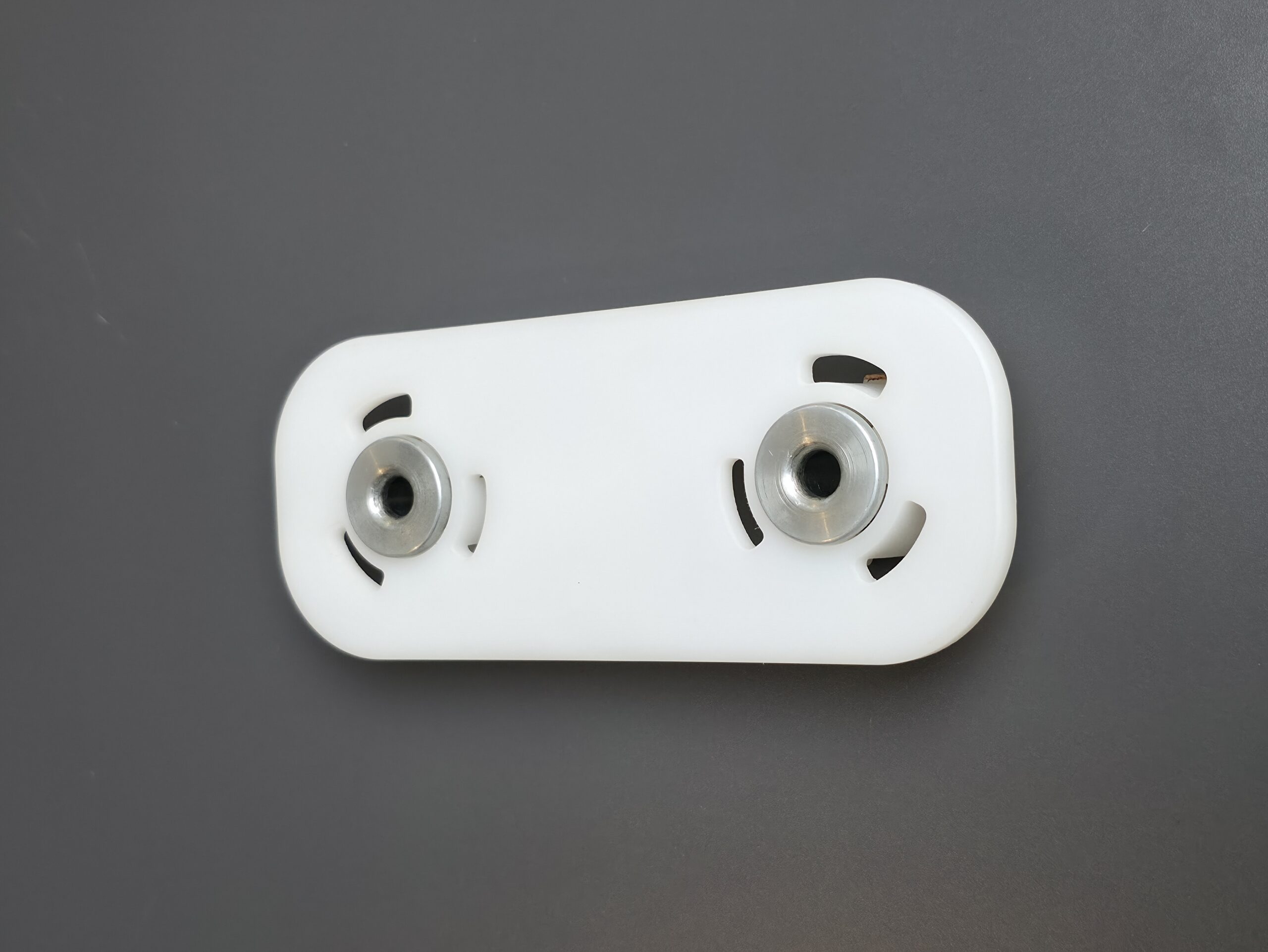

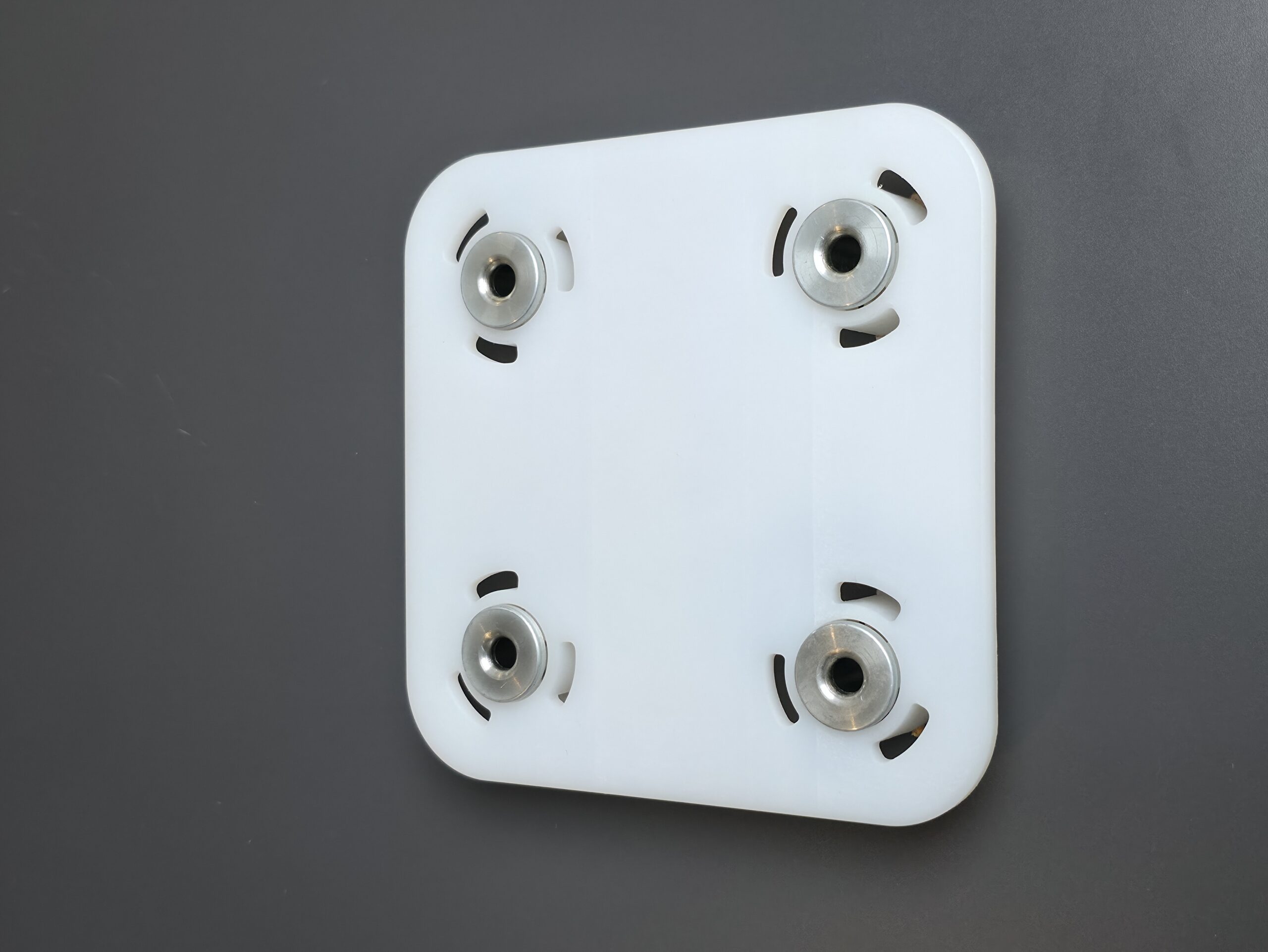

With a rapid, no-nonsense, tool-free FOOT ACTIVATED patented connection system , get the sustainable option for your next event / arena flooring.
ECM-25 Event matting – The Sustainable alternative to HDPE that outperforms in Durability & Affordability

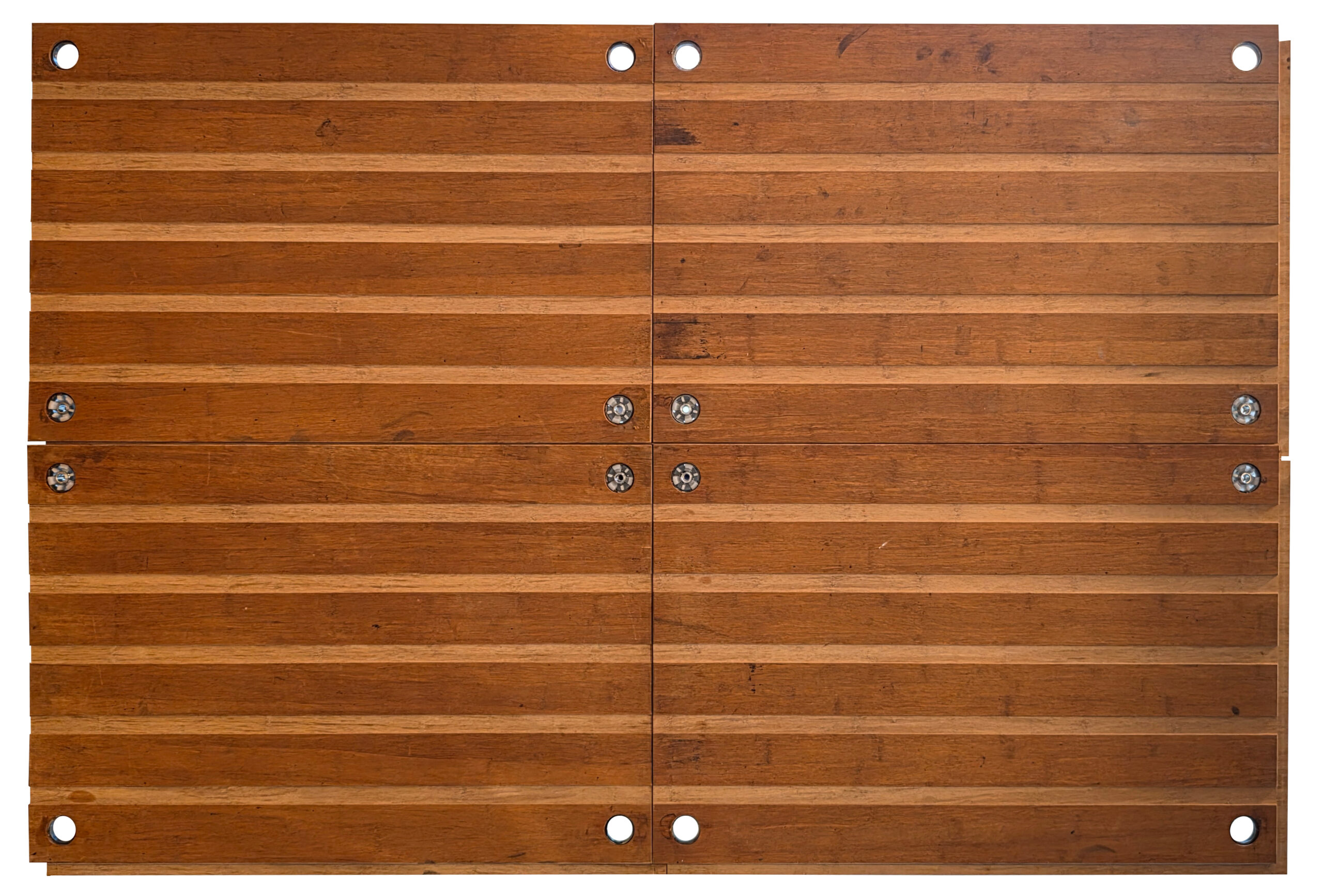

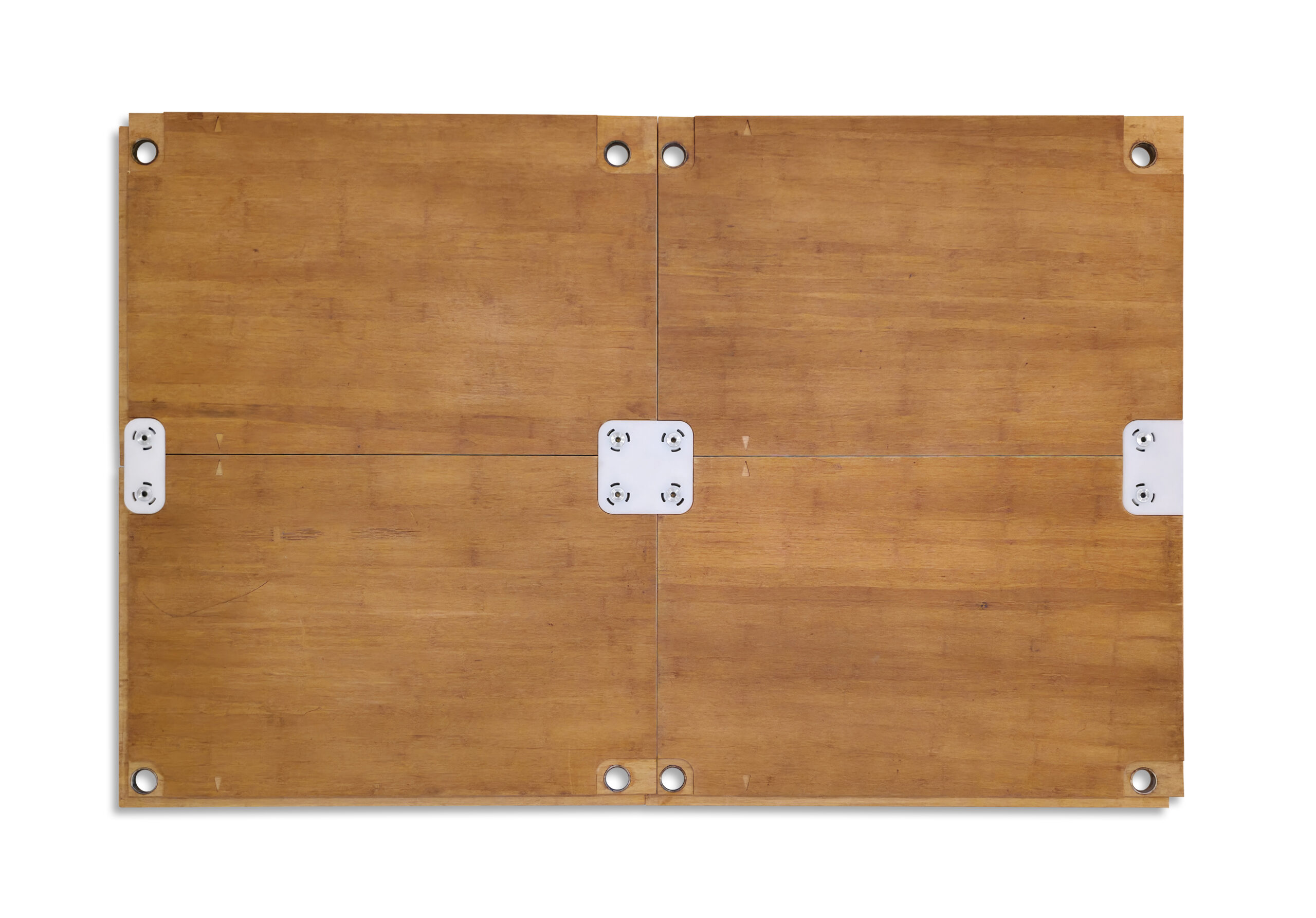

Built using our proprietary Flex Weave bamboo technology, the ECM-25 Event Matting offers unmatched strength, a lighter footprint, and an exceptional installation design.
Specifications
|
Description |
ECM-25 |
ECM Advantage |
HDPE / Plastic |
|---|---|---|---|
|
Actual Size |
0.9m x 0.6m x 25mm |
Thinner / Stronger / Lightweight / with Rapid Quick-Lock Patented Installation and Recovery |
1.2m x 1.2m x 38mm |
|
Useable Area |
0.50m2 (5.38 sqft) |
1.23m2 |
|
|
Weight |
16kgs (35 lbs) |
22.7kg (50 lbs) |
|
|
Strength |
647 psi (4,459 kN/m2) |
187% stronger |
300 psi |
|
Thickness |
25mm (0.98 inches) |
34% thinner |
38mm |
|
Coverage / 20ft container |
1420 mats 710m2 (7,600 sqft) |
38% More Coverage |
420 mats 512m2 (5,555 sqft) |
|
Connectors |
4 snap lock per mat |
Quicker connection |
12 connection points |
|
Buoyancy |
No |
Does not Float |
floats |
|
Repairable on site |
Yes |
Full Length Aeration |
Yes |
|
Fire rating |
Class A ASTM E84 |
Does not Burn |
Melts at 121 °C (240F) |
|
Description |
ECM-25 |
ECM Advantage |
HDPE / Plastic |
|---|---|---|---|
|
Actual Size |
1m x 1m x 25mm |
Fully Useable Area for an Efficient Operation |
"1.2m x 1.2m x 38mm |
|
Useable Area |
0.95m2 (10.23 sqft) |
1.23m2 |
|
|
Weight |
26kgs (57 lbs) |
22.7kg (50 lbs) |
|
|
Strength |
647 psi (4,459 kN/m2) |
187% stronger |
225 psi |
|
Thickness |
25mm (0.98 inches) |
34% thinner |
38mm |
|
Mats per 20 ft container |
1076 |
45% more per container |
738 |
|
Coverage / 20ft container |
1022m2 (11,000 sqft) |
12.5% more coverage |
908 m2 |
|
Connectors |
4 snap lock per mat |
Quicker connection |
12 connection points |
|
Buoyancy |
No |
Does not Float |
floats |
|
Repairable on site |
Yes |
Protects the grass |
Yes |
|
Fire rating |
Class A ASTM E84 |
Does not Burn |
Melts at 121 °C (240F) |
How the ECM-25 Can Boost Your Performance
Operational & Cost Efficiency
- Lightweight 16kg (35 lbs) per m2 manually installed
- Grass Protection: Integrated ventilation mitigates grass fading
- High load capacity: 4459 kN/m3 ensures surface event stability
- Flat Surface with over-lap ensures pedestrian comfort
- Anti-slip: Tested to EU and NZ standards designed to perform and protect event attendees

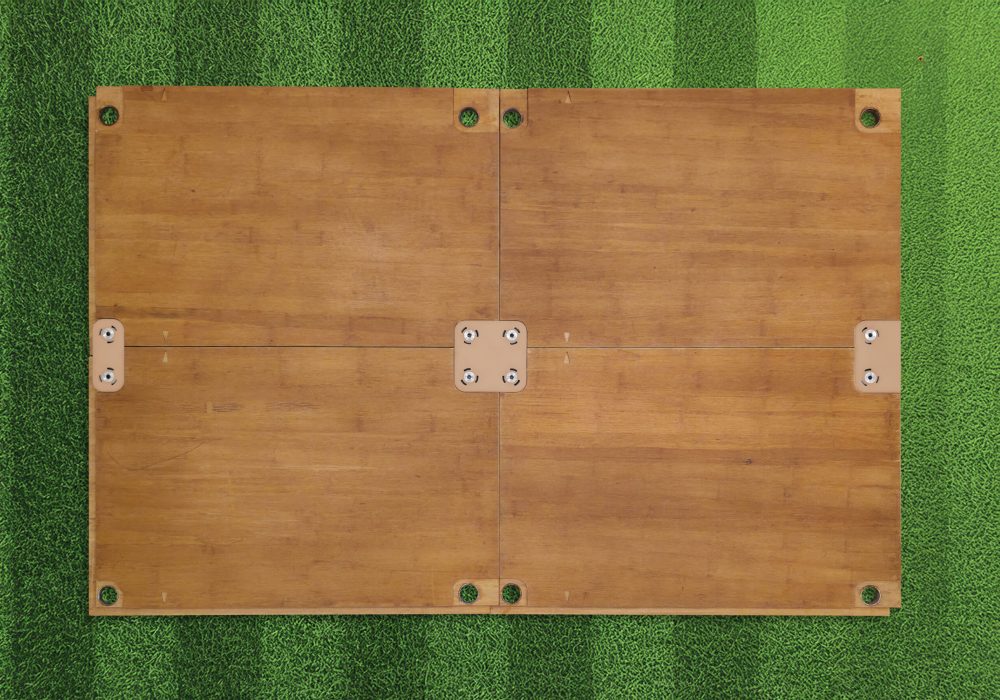

Turf Protection
ECM-25 Event Matting & Turf Protection is manufactured from Flex Weave Bamboo, our process uses bamboo from certified plantations, guaranteeing a superior strength and resilience.
- From sustainably sourced bamboo plantations
- Resistant to rot, termites
- UV protected
- Recyclable at end-of-life — chipped and reused as organic soil mulch
- Carbon-efficient lower emissions than timber, HDPE, or concrete paver alternatives
- Resistant to fire, does not burn.
With proper maintenance, the ECM-25 Event Mat and Turf Protection has a useable life of 15+ years, making it the ideal solution for companies seeking a long-term, low impact, and natural event / arena solution.
